Description

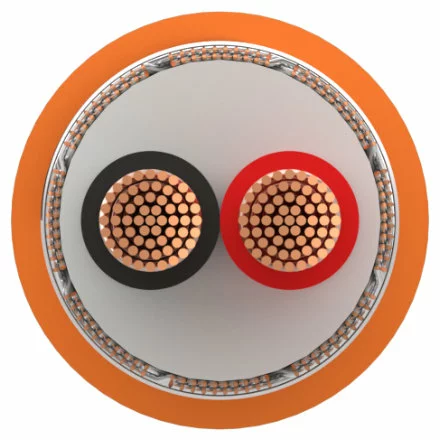

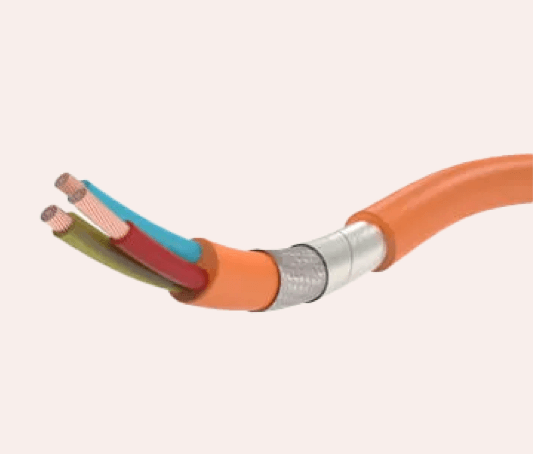

Product Structure
- Conductor：Bare Copper/Tinned Copper
- Filling: PP rope
- Taping：Polyester tape/aluminum foil
- Braid：Tinned copper
- Insulation/Sheath：XLPE / XLPO (red, white, black)/orange
Product Features
- Rated temperature：-40℃~125℃;
- Rated Voltage：AC/DC 600/900v;
- Short-term Aging：240h,Comply with QC/T 1037;
- Long-term Aging： 3000h,Comply with QC/T 1037;
- Withstand voltage：2.1kV/1min. ( 600/900v );
- Anti-tear Performance：>20N/mm;
- Minimum bending radius：5D(OD≤20mm),6D(OD >20mm);
- Environmental Requirements：RoHS & REACH;
Remarks: The above product specifications, dimensions and structures may be changed due to technological progress. Similar specifications can be designed and manufactured according to customer needs.
Technical Parameters of XLPE HV Shielded Multi-Core Copper Cable
| Number of cable cores | Cable specifications (mm2) |
Maximum conductor resistance (mΩ/m at.20°C) | Rated voltage (AC/DC) | Ref. (A) | Ref. (mm) | Rated temperature | Color |
| 2 | 1.5 | 12.7 | 600V/900V | 13 | 8.2 | -40℃~ 125℃ | orange |
| 3 | 600V/900V | 11 | 8.8 | -40℃~ 125℃ | orange | ||
| 4 | 600V/900V | 10 | 9.5 | -40℃~ 125℃ | orange | ||
| 5 | 600V/900V | 9 | 10.0 | -40℃~ 125℃ | orange | ||
| 2 | 2.5 | 7.6 | 600V/900V | 18 | 9.6 | -40℃~ 125℃ | orange |
| 3 | 600V/900V | 16 | 10.2 | -40℃~ 125℃ | orange | ||
| 4 | 600V/900V | 14 | 10.8 | -40℃~ 125℃ | orange | ||
| 5 | 600V/900V | 13 | 11.8 | -40℃~ 125℃ | orange | ||
| 2 | 4 | 4.71 | 600V/900V | 26 | 11.0 | -40℃~ 125℃ | orange |
| 3 | 600V/900V | 22 | 12.0 | -40℃~ 125℃ | orange | ||
| 4 | 600V/900V | 20 | 13.0 | -40℃~ 125℃ | orange | ||
| 5 | 600V/900V | 18 | 14.2 | -40℃~ 125℃ | orange | ||
| 2 | 6 | 3.14 | 600V/900V | 33 | 12.0 | -40℃~ 125℃ | orange |
| 3 | 600V/900V | 29 | 13.8 | -40℃~ 125℃ | orange | ||
| 4 | 600V/900V | 26 | 14.8 | -40℃~ 125℃ | orange | ||
| 5 | 600V/900V | 23 | 16.0 | -40℃~ 125℃ | orange |
