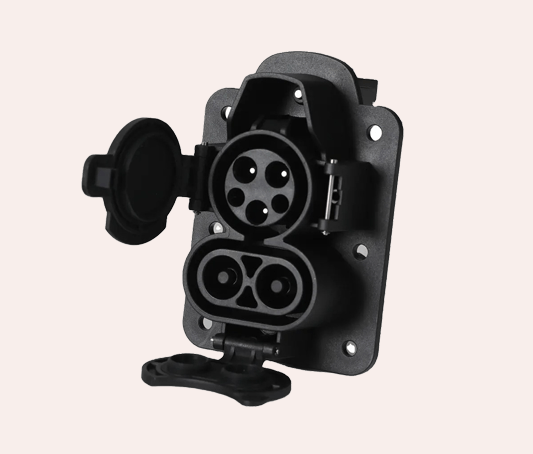

200A CCS Type 1 Charging Inlet
- DC input: 80A/ 150A / 200A 1000V DC MAX
- AC input: 16A 32A AC MAX
- Insulation resistance: >2000MΩ (DC1000V)
- Terminal temperature rise.: <50K
- Withstand Voltage: 3200V
- Contact Resistance: 0.5m Ω Max
Address: ChangPing, Beijing, China Office Open: 9.00 am - 8.00 pm Email: [email protected]
Yee Parts' Product Category: Charging Inlets & Adapters

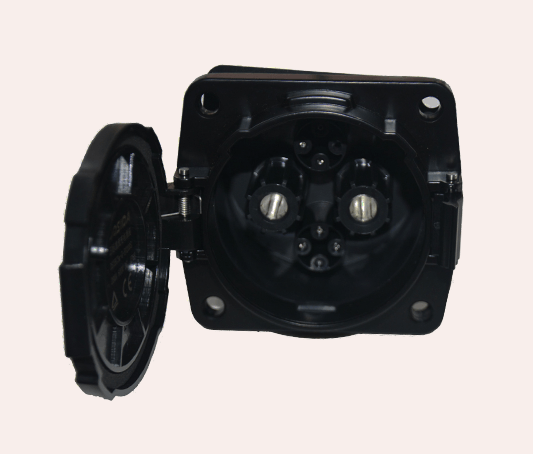

200A CHAdeMO DC Charging Inlet
- DC input: 125A/ 150A / 200A 1000V DC MAX
- Insulation resistance: >2000MΩ (DC1000V)
- Terminal temperature rise.: <50K
- Withstand Voltage: 3200V
- Contact Resistance: 0.5m Ω Max

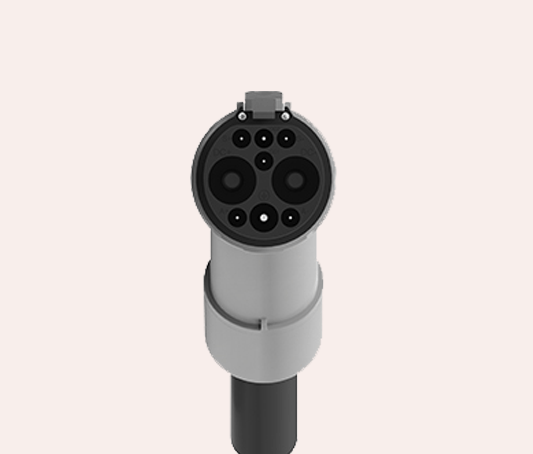

250A GB/T Plug Connector / GB T EV Charging Cable
GB/T EV Charging Cable, suitable for DC fast charging of electric vehicles, can quickly charge Plug-in Hybrid Electric Vehicles (PHEV) and Electric Vehicles(EV)
Main Advantage
- The product meets GB/T 20234.2-2015.
- Replaceable DC power terminals reduce maintenance costs
- The wire diameter is small, and the overall weight is light;
- Max operating temperature: 90℃
- Min operating temperature: -40℃
- Rated voltage: 1000V
- Rated current: 300A 250A 200A
- Flame Resistance: UL94V-0

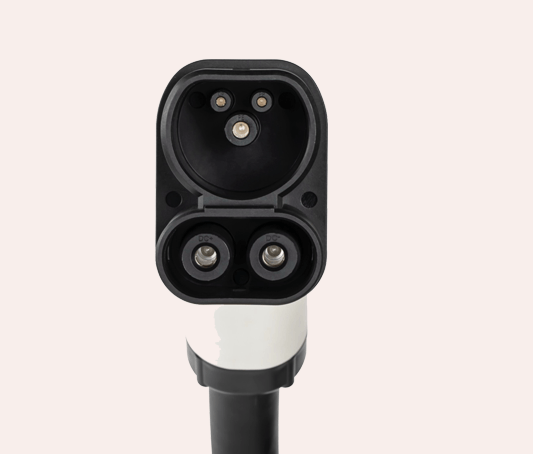

300A CCS 2 Plug Connector / CCS2 Charging Cable
CCS 2 Plug(Combined Charging System plug) / CCS2 Charging Cable, suitable for DC fast charging of electric vehicles, can quickly charge Plug-in Hybrid Electric Vehicles (PHEV) and Electric Vehicles(EV)
Main Advantage
- The product meets IEC 62196.3-2022
- Replaceable DC power terminals reduce maintenance costs
- The wire diameter is small, and the overall weight is light;
- Max operating temperature: 90℃
- Min operating temperature: -40℃
- Rated voltage: 1000V
- Rated current: 300A 250A 200A
- Flame Resistance: UL94V-0

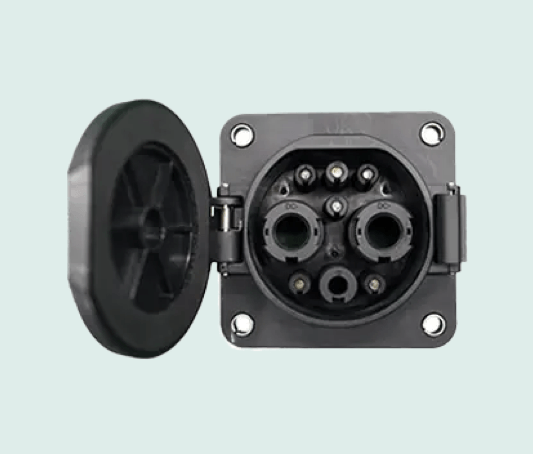

400A GB/T DC Charging Socket
- Rated current: 80A 125A 200A 250A 300A 400A 500A
- Operating voltage: 750V/1000V DC
- Insulation resistance: >2000MΩ (DC1000V)
- Terminal temperature rise:<50K
- Withstand voltage: 3200V
- Vibration resistance: Meet JDQ 53.3 requirements
- Contact impedance: 0.5MΩ Max

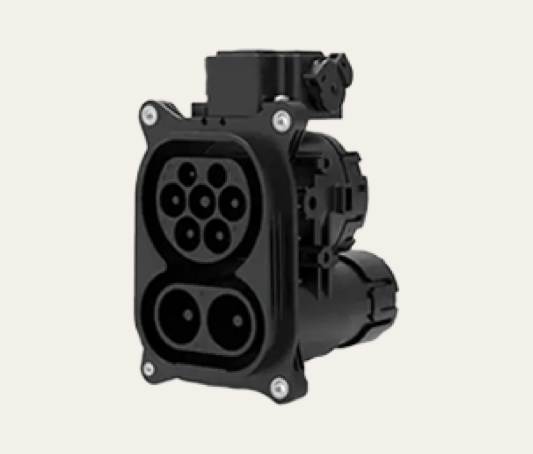

500A 1000V CCS Type 2 Charging Inlet
- DC input: 80A/125A / 150A / 200A / 300A / 400A / 500A 1000V DC MAX
- AC input: 16A 32A AC MAX
- Insulation resistance: >2000MΩ (DC1000V)
- Terminal temperature rise.: <50K
- Withstand Voltage: 3200V
- Contact Resistance: 0.5m Ω Max

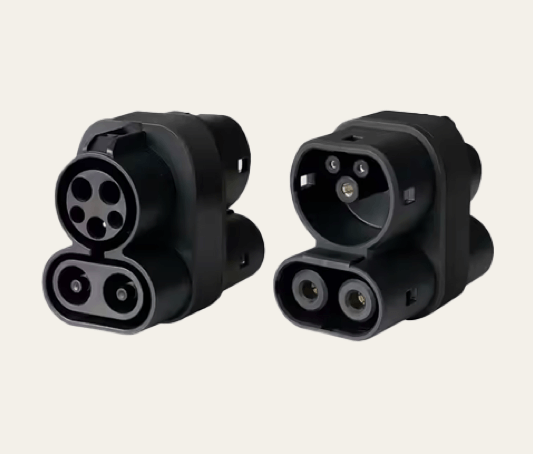

CCS1 To CCS2 EV Adapter
- Rated Current: 250A DC
- Charging Interface: CCS Type 1 plug and CCS Type 2 port Car
Compliant with industry standards and safety regulations, this adapter seamlessly bridges the gap between CCS Type 1 (CCS1/SAE J1772) charger plugs and CCS Type 2 (CCS2/IEC 62196) vehicle sockets. It enables EU Standard CCS Type 2 electric vehicles to charge efficiently at CCS Type 1 charging stations.

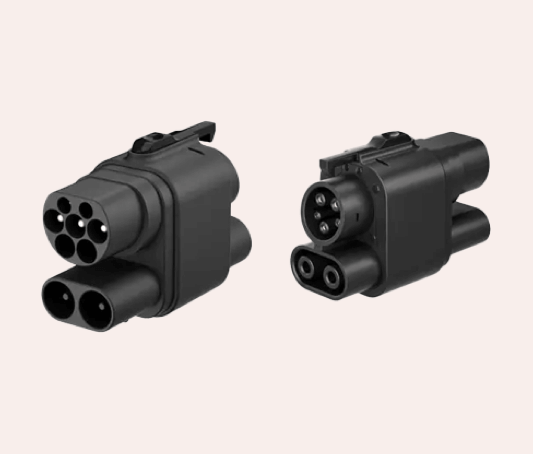

CCS2 to CCS1 EV Adapter
- Rated Current: 250A DC
- Charging Interface: CCS Type 2 plug and CCS Type 1 port Car
Compliant with industry standards and safety regulations, this adapter seamlessly bridges the gap between CCS Type 2 (CCS2/IEC 62196) charger plugs and CCS Type 1 (CCS1/SAE J1772) vehicle sockets. It enables CCS Type 1 electric vehicles to charge efficiently at CCS Type 2 charging stations.
