Description
Product Structure
- Conductor： Bare Copper/Tinned Copper
- Insulation/Sheath: XLPE (Custom Color)
Product Features
- Rated Temperature：125℃
- Rated Voltage: 60 V DC (25 V AC) or less
- Standards: SAE: J1128, Ford: M1L-123A, Chrysler: MS-8288
- Operating Temperature: -40°C to 125°C (-40°F to 257°F)
-
Stranded, tinned, or bare copper conductor 24~8AWG
- Environmental Requirements: RoHS & REACH
Remarks: TXL wire is an extra-thin walled, chemically cross-linked polyethylene (XLPE) insulated single-core cable designed for automotive applications requiring a smaller diameter and minimal weight solution. It offers excellent high-temperature resistance (-40°C to 125°C / -40°F to 257°F), flame retardancy, flexibility, and resistance to oil, gasoline, grease, moisture, acids, and solvents, making it ideal for demanding environments like engine compartments. Compliant with key automotive standards including SAE J-1128, Ford ESB-M1L85-B / M1L-123A, and Chrysler MS-8900 / MS-8288, it has a voltage rating of 60 V DC (25 V AC). Available in 24 AWG to 8 AWG sizes and multiple colors.
Technical Parameters of TXL UL Automotive Wire
| AWG | Conductor Cross-Section (mm²) | Conductor Construction (Strands/Dia. mm) | Conductor OD (mm) | Insulation Thickness (mm) | Insulation OD (mm) | Dielectric Strength (V/mm) |
|---|---|---|---|---|---|---|
| 24 | 0.22 | 7/0.19 | 0.57 | 0.44 | 1.45 | 1000 |
| 22 | 0.35 | 7/0.25 | 0.75 | 0.43 | 1.60 | 1000 |
| 20 | 0.50 | 7/0.31 | 0.93 | 0.44 | 1.80 | 1000 |
| 18 | 0.80 | 16/0.254 | 1.17 | 0.44 | 2.05 | 1000 |
| 16 | 1.00 | 26/0.254 | 1.49 | 0.43 | 2.35 | 1000 |
| 14 | 2.00 | 19/0.36 | 1.80 | 0.43 | 2.65 | 1000 |
| 12 | 3.00 | 19/0.45 | 2.25 | 0.48 | 3.20 | 1000 |
| 10 | 5.00 | 19/0.57 | 2.85 | 0.53 | 3.90 | 1000 |
| 8 | 8.00 | 19/0.71 | 3.55 | 0.63 | 4.80 | 1000 |

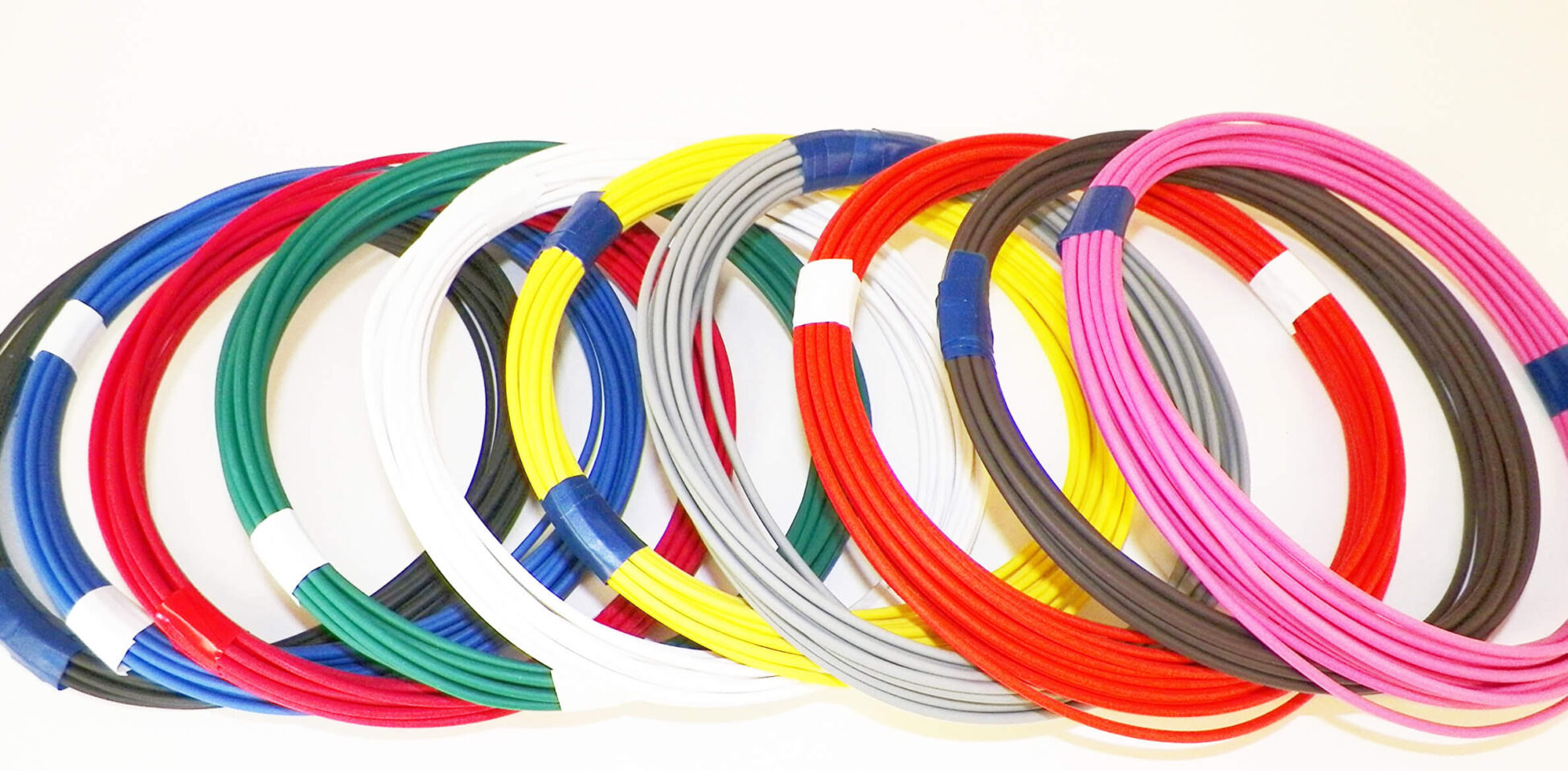

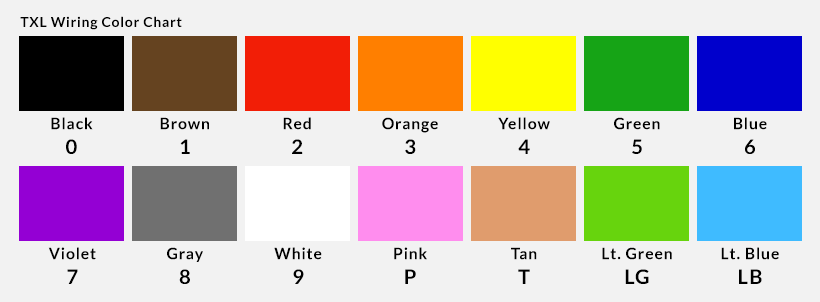

TXL COLOR
