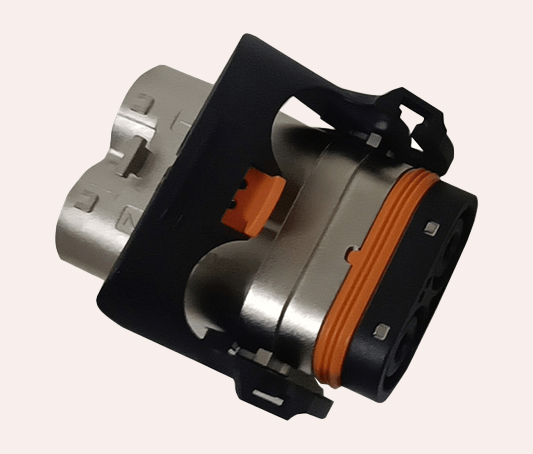

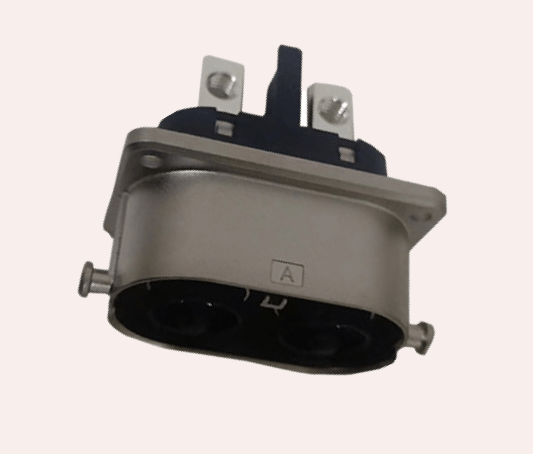

2 Pole High Voltage Metal Connector

The 2-pole metal connector has excellent corrosion resistance, good electrical conductivity, strong locking force, and long service life, etc.. It can be well connected with 16mm² and 25mm² shielding cables through the crimping process. If you have any requirements about the above products, please feel free to contact us.

Temp Range: -40℃~ +125℃
Rated current: 100A, 120A
Rated Voltage: 1000V
Sealing Class: IP67

Description

2-Pole High-Voltage Metal Connector

The 2-pole metal connector is used to join two single-core cables together. This 2 pole high-voltage connector is designed to connect the 16mm² and 25mm² shielding cables. It’s suitable for high voltage use, such as electric car, inverter, electric motor, HV PDU, DC-DC converter, or on-board charger. The material of the connector is zinc alloy, which is heat-resistant and corrosion-resistant. The contact surface is copper with good conductivity, so that the contact resistance is small. The sealing part of this 2-pole connector is silicone rubber, with great sealing performance, and it can be used in harsh environments.

Specification & Features of 2-Pole Metal Connector

Specification	Features
Pole: 2 pos Working temperature: -40℃~+125℃ Rated current: 120A max. Insulation resistance: 200MΩ Withstand voltage: 3000VAC Mechanical life: 200 times min. Salt spray:48H Waterproof: IP67 (mated condition) Wire range: 16mm² , 25mm² Material: metal	HVIL function is optional Touch-proof design Multiple key options: A, B, C 360° shielded connection It provides a reliable connection to the EV components, suitable for high-voltage DC power transmission. Secondary locking ensures that it remains in place even during vibrations or shocks The connector can be easily installed.
