What is an Energy Storage System (ESS)?​​

An Energy Storage System (ESS) is a crucial technology that captures and stabilizes electrical energy for later use. These systems range from medium-sized units for homes or businesses to massive grid-scale installations.

At their core, ESS combine key components:

• ​​Lithium-ion Batteries:​​ The primary energy storage units.
• ​​Inverters:​​ Convert power between DC (batteries/solar) and AC (homes/grid).
• ​​Power Conditioning Systems (PCS):​​ Manage charging, discharging, and power quality.
• ​​Battery Management System (BMS):​​ Safeguards battery health and performance.

​​Why Are Battery Storage Systems Important?​​
Battery storage is essential for integrating renewable energy sources like solar and wind into the grid. They enable two key approaches:

1. ​​Off-Grid Energy Storage:​​ Relies entirely on batteries, allowing users to achieve 100% energy self-sufficiency, independent of the utility grid.
2. ​​Grid Storage Solutions:​​ Allow users to:
   • Store surplus self-generated energy (e.g., from solar panels).
   • Use that stored energy during peak times or outages.
   • Sell excess energy back to the utility for credits.
   • (Hybrid Systems): Many grid-connected systems incorporate batteries for backup power during outages.

Energy Storage Systems in the Smart Home

ESS are the backbone of the modern smart home. Typically wall-mounted units connected to an inverter, residential energy storage systems:

• Manage household peak and off-peak electricity demand.
• Store solar energy for use at night.
• Provide critical backup power during grid failures.
• Optimize self-consumption and reduce grid reliance.

Energy Storage in Solar Systems: Application & Benefits

Battery storage technology is fundamental for maximizing the value of solar power, both for off-grid properties and grid-connected homes. As battery tech becomes smaller and more affordable, its adoption in home solar systems is rapidly increasing.

How Solar Battery Storage Works

The principle is similar to batteries in phones or laptops but scaled up:

1. ​​Charge:​​ Solar panels generate DC electricity, charging the batteries (often via a charge controller).
2. ​​Store:​​ Energy is held within the batteries until needed.
3. ​​Discharge:​​ The ​​inverter​​ converts the stored DC electricity from the batteries into usable AC power for your home appliances or the grid. (Conversion is vital because solar panels produce DC, but homes and the grid use AC).

The Significance of ESS in Solar: 3 Key Benefits

For solar (and wind) systems to be truly effective, their battery storage must perform optimally – reacting instantly to demand changes while minimizing energy loss and maximizing storage capacity and charging speed. ESS provide critical advantages:

1. ​​Ensure System Stability:​​
   • Solar output and home energy demand fluctuate significantly.
   • ESS acts as a buffer, absorbing excess energy and releasing it when needed, smoothing out power flow and enabling stable system operation.
2. ​​Provide Energy Backup & Reliability:​​
   • ESS provides critical backup power when solar generation stops (at night, during storms, or due to equipment issues).
   • Ensures continuous power supply for essential loads, independent of grid availability or sunlight.
3. ​​Improve Power Quality & Reliability:​​
   • Protects sensitive equipment from grid disturbances like voltage spikes, sags, or frequency variations.
   • Guarantees consistent, high-quality power output, protecting your appliances and electronics.

Essential Cables and Connectors for Energy Storage Systems

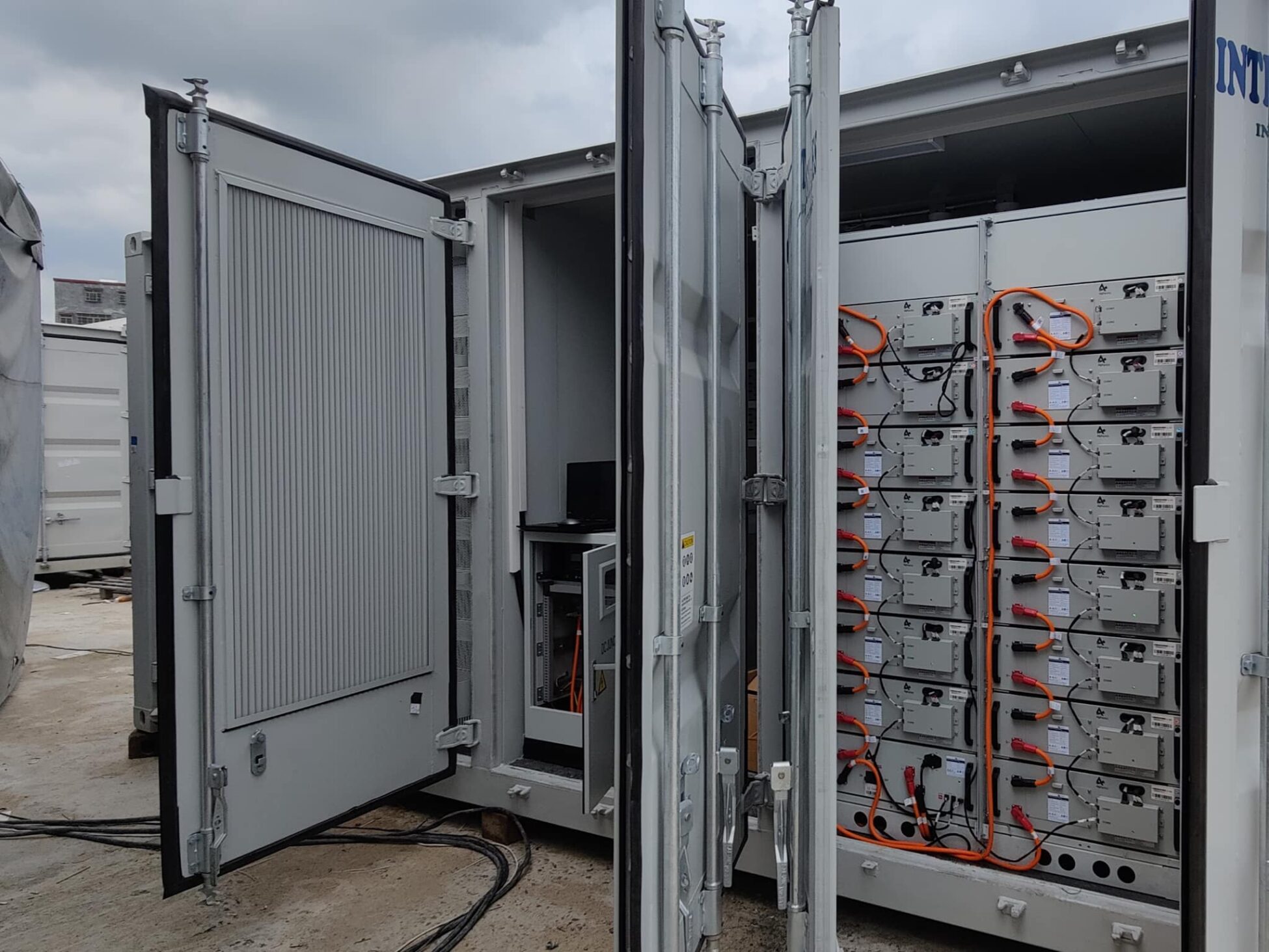

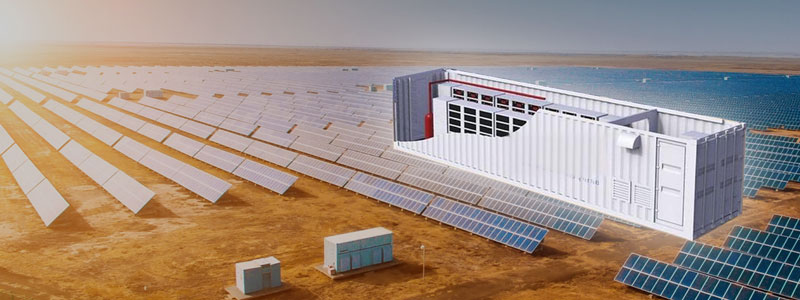

Large-scale ESS often use modular battery storage cabinets housed in containers to support critical power needs. These systems rely on ​​specialized high-power connectors and energy storage cable harnesses​​ for safe, efficient, and reliable performance.

Energy Storage Connectors: Powering the System

​​High-Current ESS connectors​​ are designed to handle the substantial power flows within battery storage systems. Key features and common specifications include:

• ​​Key Functionality:​​ Keyed connections to prevent misplugging (error prevention), color-coding (positive/negative identification), 360-degree rotation capability, secondary locking for secure mating, and often blind-mating capability.
• ​​Common Types & Specs:​​
  • ​​6mm Connectors:​​ Ideal for 80A, 120A applications. Compatible with 16mm² and 25mm² HV cables. Used in energy storage cabinets, mobile units, and large PV plants.
  • ​​8mm Connectors:​​ Handle higher currents (120A, 150A, 200A). Matched with 25mm², 35mm², 50mm² HV cables.
  • ​​12mm Connectors:​​ Designed for the highest currents (250A, 300A, 350A/400A). Used with 70mm², 95mm², 120mm² HV cables.

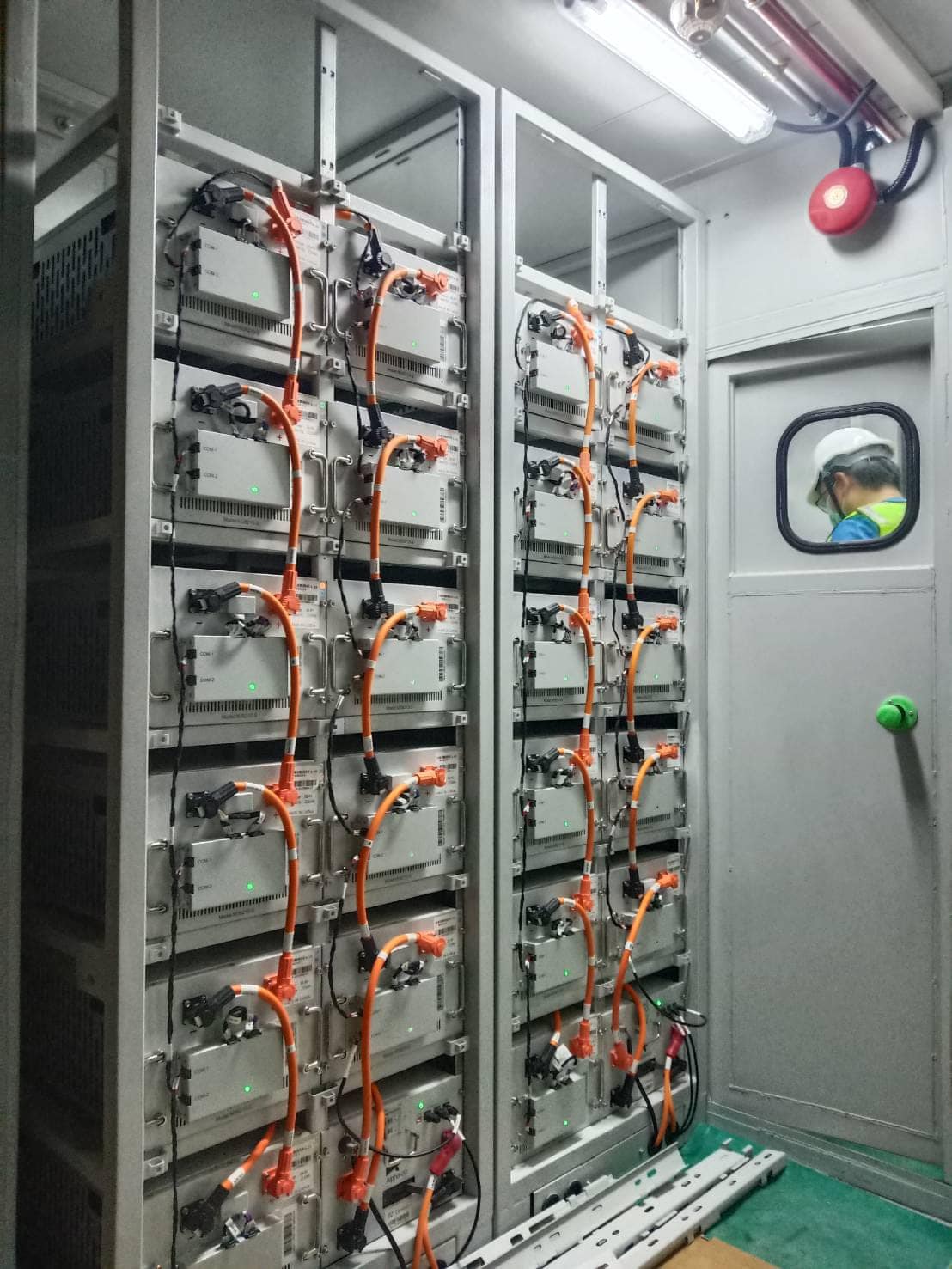

Energy Storage Systems and ESS Cable

Optimized Energy Storage Harness Assembly

Modern ESS wiring harness manufacturing prioritizes efficiency and quality:

• Supports “crimp first, then thread” process for high production efficiency.
• Offers high IP protection ratings: Sockets individually sealed to ​​IP67 (optional)​​, plug-socket connection achieving ​​IP67 (optional)​​, and disconnect state meeting ​​IPXXB​​ (finger-safe).
• Integrates critical features like keying, color-coding, 360° plug rotation, secondary locking, and blind-mating.

High Voltage (HV) Energy Storage Cables

​​HV energy storage cables​​ form the vital pathways for power transmission:

• Available in ​​2-pin​​ (positive & negative) or ​​3-pin​​ configurations.
• Contact ratings typically range from ​​100A to 500A​​.
• Can integrate ​​small signal contacts​​ for essential ​​High Voltage Interlock Loop (HVIL)​​ circuits – a critical safety feature that detects disconnected components and disables high voltage.
• Harnesses incorporate ​​electromagnetic shielding​​ for noise immunity and robust designs for ​​mechanical shock​​ resistance.
• ​​All customized high-voltage harness assemblies comply with stringent international electrical safety standards​​ (UL, IEC, etc.).

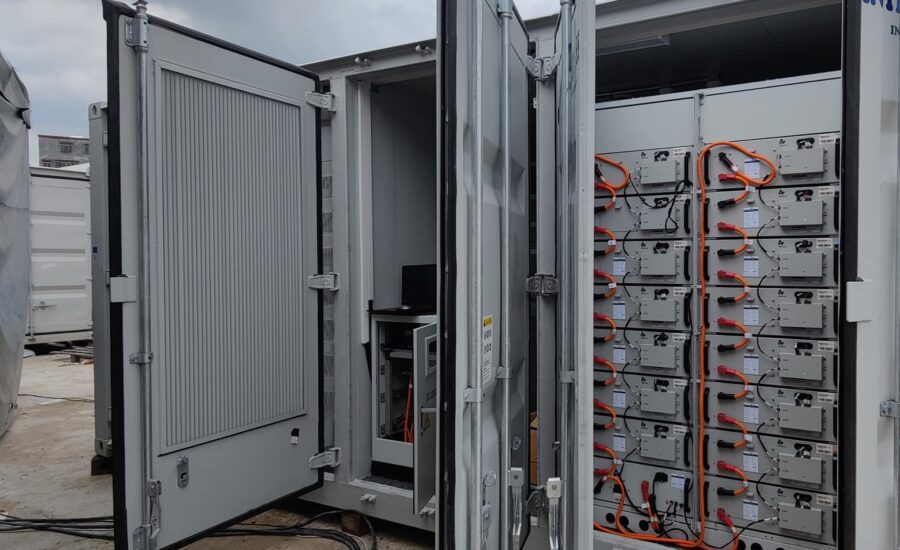

Energy Storage Systems and ESS Cable

Advanced Connector Design Features

Leading ESS connectors often include:

• ​​Touch-Proof Design:​​ Prevents accidental contact with live terminals.
• ​​360-Degree Swivel Plug:​​ Allows flexible cable routing.
• ​​Compact & Rugged Housing:​​ Built for demanding environments.
• ​​Quick Lock & Push Release:​​ Enables easy, secure mating and unmating.
• ​​Color Options:​​ (Red, Black, Orange) for clear polarity/phase identification.
• ​​Versatile Termination:​​ Supports various connection methods (screw, crimp, solder).

​​YeeParts Cable: Your ESS Connector Solution Partner​​

YeeParts Cable provides robust connector solutions tailored for energy storage module installation. We offer:

• ​​Pre-Assembled Connector/Cable Sets:​​ Delivered ready-to-install according to your specific requirements.
• ​​Compact & Flexible Housings:​​ Accommodating contacts up to ​​200A and 1500V​​.
• ​​Intuitive Design:​​ Features like ​​360° bulkhead rotation​​ and secure, intuitive locking mechanisms for covers, housings, and male/female contacts.
• ​​Blind-Mate Pluggable Connections:​​ Simplify installation and enhance system efficiency and serviceability.
